### From Adjunctions to Monads

I thought I would share one of my favorite constructions in

Haskell, namely that adjoint functors give rise to monads.

Although it's a trivial result in category theory how it

manifests in Haskell is quite lovely.

A Functor in Haskell maps objects and morphism (i.e. functions)

in a subcategory of *Hask* to objects and morphisms of another

category.

```
class Functor f where
fmap :: (a -> b) -> f a -> f b
```

And satisfies the functor laws:

```
fmap id = id
fmap (a . b) = (fmap a) . (fmap b)
```

In commutative diagrams we draw objects as points and morphisms

as arrows. In a string diagrams we invert this and draw morphisms

as points and objects as lines.

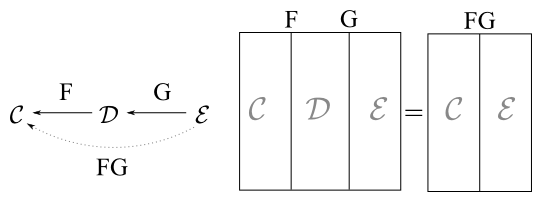

Functor composition is defined for $F : \mathcal{A} \rightarrow

\mathcal{B}$, $G : \mathcal{B} \rightarrow \mathcal{C}$ as $G

\circ F : \mathcal{A} \rightarrow \mathcal{C}$, and is drawn with

parallel lines.

```
newtype FComp f g a = C { unC :: f (g a) }
instance (Functor f, Functor g) => Functor (FComp f g) where
fmap f (C x) = C (fmap (fmap f) x)
```

Generally the composition of functors $F \circ G$ is written

simply as $FG$. Composition diagrammatically allows us to

collapse adjacent segments in our string diagram.

The identity functor ( $\text{Id}$ ) is the functor that maps

each morphism and object to itself.

```
newtype Id a = Identity { unId :: a }
instance Functor Id where
fmap f x = Identity (f (unId x))
```

Composition with the identity functor forms an identity relation:

$$

F \circ \text{Id}_B = F \

\text{Id}_A \circ F = F

$$

As witnessed by the expressions:

```
left :: Functor f => FComp f Id a -> f a
left (C a) = fmap unId a
right :: Functor f => f a -> FComp f Id a
right a = C $ fmap Identity a
```

We'll follow the convention to omit the identity functor, and it is shown as a dotted line in subsequent

string diagrams.

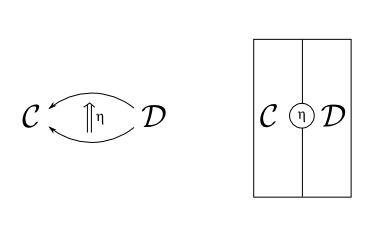

A natural transformation in our context will be a polymorphic function

associated with two Haskell functor instances `f`

and `g`

with type

signature `(Functor f, Functor g) => forall a. f a -> g a`

. Which could be written with

the following type synonym.

```
type Nat f g = forall a. f a -> g a
```

The identity natural transform mapping a functor $F$ to itself is

written $1_F$ and in Haskell is just (`id`

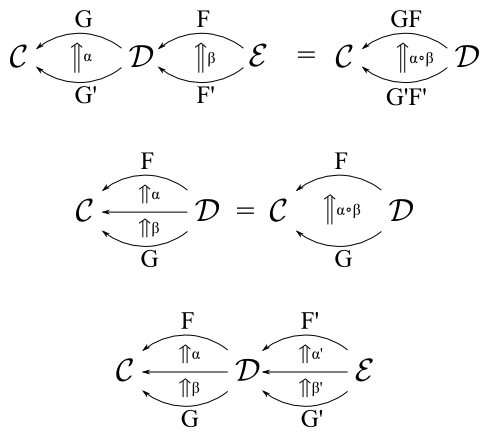

). The composition of

natural transformations follows the associativity laws, shown

below:

The final *interchange law* states that we can chase the natural

transformations through the functors horizontally or compose

natural transformation between functors vertically and still

arrive at the same result.

$$

(\alpha \beta) \circ (\alpha' \beta') = (\alpha \alpha') \circ (\beta \beta')

$$

```
type NatComp f f' g g' = forall a. f' (f a) -> g' (g a)
vert :: (Functor f, Functor f', Functor g, Functor g') =>
Nat f' g' -> Nat f g -> NatComp f f' g g'
vert a b x = a (fmap b x)
horiz :: (Functor f, Functor f', Functor g, Functor g') =>
Nat f' g' -> Nat f g -> NatComp f f' g g'
horiz a b x = fmap b (a x)
```

By the interchange law `horiz`

and `vert`

must be

interchangable under composition. For natural transformations

`a, b, a', b'`

in Haskell we have the equation:

```
(a . b) `vert` (a' . b') == (a `horiz` a') . (b `horiz` b')
```

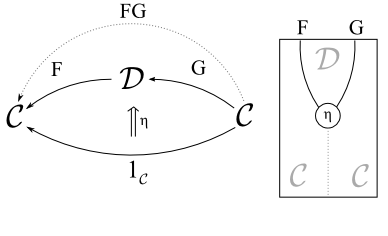

A diagram example for a natural transformation $\eta : 1_\mathcal{C}

\rightarrow {FG}$ between the identity functor and the

composition functor of $FG$ would be drawn as:

An isomorphism $F \cong G$ implies that composition of functors

is invertible in that $F G = \text{Id}_C$ and $G F =

\text{Id}_D$. An adjoint $F ⊣ G$ between a pair of functors $F :

D \rightarrow C$ and $G : C \rightarrow D$ is a weaker statement

that there exists a pair of associated natural transformations

$(F, G, \epsilon, \eta)$ with:

$$

\epsilon : FG \rightarrow 1_\mathcal{C} \

\eta : 1_\mathcal{D} \rightarrow FG

$$

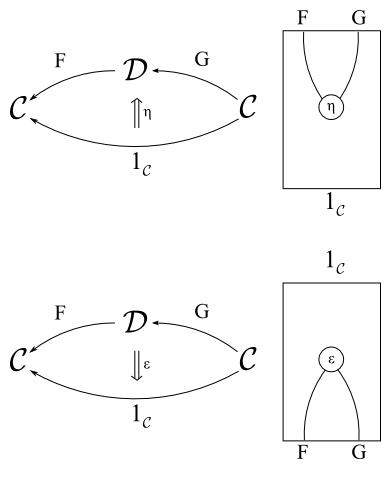

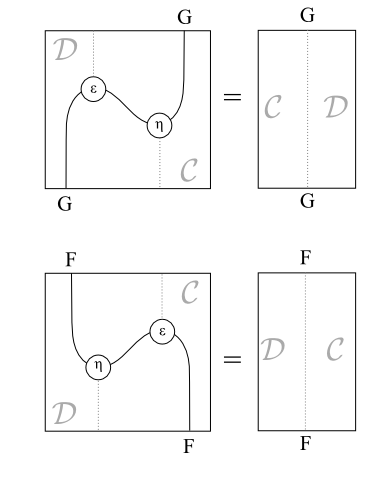

Such that the following *triangle identities* hold:

$$

(\epsilon F) \circ (F \eta) = 1_F \

(G \epsilon) \circ (\eta G) = 1_G

$$

These are drawn below:

In terms of the categories $C,D$ an adjoint is in some sense a

"half-isomorphism" or "almost inverse" but some structure is lost

in one direction.

$\eta$ and $\epsilon$ are also referred to respectively as the

*unit* and *counit*.

In Haskell we have the following typeclass which unfortunately

requires a functional dependency in order for type inferencer to

deduce which `fmap`

is to be used:

```
class (Functor f, Functor g) => Adjoint f g | f -> g, g -> f where
eta :: a -> g (f a)
epsilon :: f (g a) -> a
```

There are also two other natural transformations ($\phi, \psi$)

which together with the adjoint functor pair form an

*adjunction*. The adjunction can be defined in terms of the

adjoint pair and this is most convenient definition in Haskell

$$

\psi \epsilon = 1_F \

\phi \eta = 1_G

$$

```
phi :: Adjoint f g => (f a -> b) -> a -> g b
phi f = fmap f . eta
psi :: Adjoint f g => (a -> g b) -> f a -> b
psi f = epsilon . fmap f
```

Notably $\phi$ and $\psi$ form an isomorphism between the set of

functions `(a -> g b)`

and `(f a -> b)`

which is the same

relation as the above triangle identities. Alternatively $\eta$

and $\epsilon$ can be expressed in terms of $\phi$ and $\psi$.

```
phi eta = id
psi epsilon = id
```

From the Haskell Prelude we have the canonical adjoint namely

`curry`

and `uncurry`

:

$$

\text{curry} \quad ⊣ \quad \text{uncurry}

$$

```
instance Functor ((,) a) where
fmap f (x,y) = (x, f y)
instance Functor ((->) a) where
fmap f g = \x -> f (g x)
```

Which we can construction an Adjoint instance from these two

functor instances:

```
instance Adjoint ((,) a) ((->) a) where
eta x y = (y, x)
epsilon (y, f) = f y
```

We can check that the triangle equalities hold for this

definition by showing both $(\epsilon F) \circ (F \eta)$ and $(G

\epsilon) \circ (\eta G)$ reduce to the identity natural

transformation ( `id`

).

```
a0 :: (a -> (b -> c)) -> a -> (b -> c)
a0 f = \f -> fmap (epsilon . fmap f) . eta
a0 f = fmap (\(y, f) -> g f y) . eta
a0 f = \x y -> f x y
a1 :: ((a, b) -> c) -> (a,b) -> c
a1 f = epsilon . fmap (fmap f . eta)
a1 f = epsilon . fmap (\x y -> f (y, x))
a1 f = \(x, y) -> f (x, y)
```

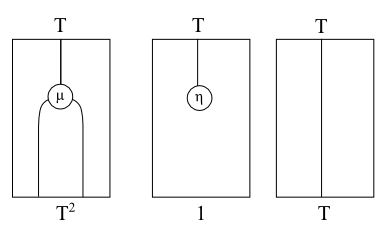

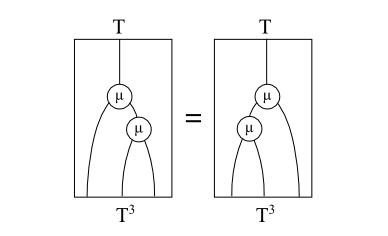

We know a Monad is an endofunctor $T : C \rightarrow C$ with two

natural transformations $(T, \mu, \eta)$ with the usual laws:

$$

\mu \circ T \mu = \mu \circ \mu T \

\mu \circ T \eta = \mu \circ \eta T = 1_T \

$$

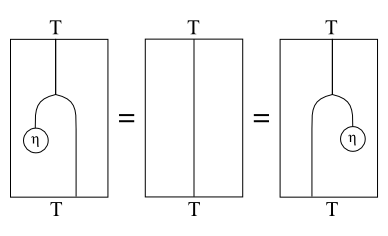

The geometric intuition is that the monad laws are reflected as

topological properties of the string diagrams. Both $\mu$ and

$\eta$ exhibit reflection symmetry and that we topologically

straighten out $\eta$ to yield the identity functor.

In Haskell we can normally

construct the

Monad type class from an Endofunctor and ($\mu, \eta$) or

`join`

and `return`

.

```
class (Functor t) => Monad t where
eta :: a -> (t a)
mu :: (t (t a)) -> (t a)
(>>=) :: t a -> (a -> t b) -> t b
ma >>= f = mu . fmap f
return = eta
join = mu
```

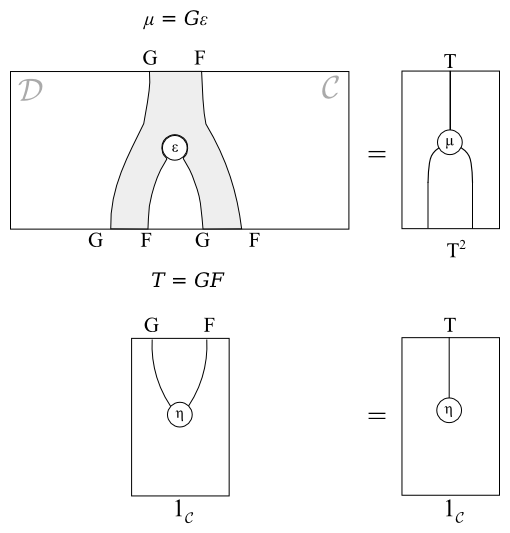

What is not immediately apparent though is that every adjoint

pair of functors gives rise to a monad $(T, \mu, \eta)$ over a

category $C$ induced by the composition of the functors to give

rise to a endofunctor and natural transformations in terms of the

unit and counit of the underlying adjunction:

$$

\begin{align}

T &= G \circ F & : &C \rightarrow C \

\mu &= G \epsilon & : &T^2 \rightarrow T \

\end{align}

$$

```
class Adjoint f g => Monad f g where
muM :: g (f (g (f a))) -> g (f a)
muM = fmap epsilon
etaM :: a -> g (f a)
etaM = eta
(>>=) :: g (f a) -> (a -> g (f b)) -> g (f b)
x >>= f = muM (fmap (fmap f) x)
```

The geometric intution for this is clear:

From the Monad we can then construct the Kleisli category in the

usual way.

```
class (Adjoint f g, Category c) => Kleisli c f g where
idK :: c x (g (f x))
(<=<) :: c y (g (f z)) -> c x (g (f y)) -> c x (g (f z))
instance Monad f g => Kleisli (->) f g where
idK = eta
g <=< f = muM . fmap (fmap g) . f
instance Kleisli c f g => Monoid (c a (g (f a))) where
mempty = idK
mappend = (<=<)
```

In retrospect this is trivial, but importantly leads us to the

more important question: Can we recover an adjunction from a

monad. The answer is Yes...
